Eurocopter / Aerospatiale AS 350 Ecureuil / AS 550 Fennec
Foto ©: Karsten Palt
AS 350 Ecureuil / AS 550 Fennec
Leichter Mehrzweckhubschrauber
| Besatzung | 1 | |
| Passagiere | 5-6 | |
| Antriebsart | 1 Wellentriebwerk | |
| Triebwerkstyp | Turbomeca Arriel 2B | |
| Leistung | 632 kW | 848 shp |
| max. Reisegeschwindigkeit | 259 km/h | 140 kts 161 mph |
| Höchstgeschwindigkeit (vne) | 287 km/h | 155 kts 178 mph |
| Dienstgipfelhöhe | 7.010 m | 23.000 ft |
| Steigleistung | 590 m/min | 1935 ft/min |
| Reichweite | 650 km | 351 NM 404 mi. |
| Leergewicht | 1.220 kg | 2.690 lbs |
| max. Startmasse | 2.250 kg | 4.960 lbs |
| Rotorblätter (Haupt/Heck) | 3/2 | 3/2 |
| Hauptrotordurchmesser | 10,69 m | 35,1 ft |
| Heckrotordurchmesser | 1,96 m | 6,4 ft |
| Rotorkreisfläche | 89,8 m² | 967 ft² |
| Länge (Rumpf) | 10,93 m | 35,9 ft |
| Länge | 12,94 m | 42,5 ft |
| Höhe | 3,34 m | 11,0 ft |
| Erstflug | 27.06.1974 | |
| Produktionsstatus | in Produktion | |
| ICAO Code | AS50 | |
| FAA TCDS | H9EU | |
| EASA TCDS | R.008 | |
| Daten für (Version) | Eurocopter AS 550C3 | |
| Weblinks | Extras |
| Eurocopter |
Druckansicht| [Photo-ID: 3360] © Karsten Palt 2010-06-11 | |
 | Eurocopter AS-350B Ecureuil Aeroheli International Reg.: D-HAIE c/n: 1790 |
| ILA Berlin 2010 [Berlin - Schönefeld (EDDB / SXF)] | |
| [Photo-ID: 1354] © Karsten Palt 2008-08-17 | |
 | Eurocopter (Aerospatiale) AS-350B Ecureuil Heli Charter Rammelsberg Reg.: D-HRAM c/n: 2591 |
| Flugtag Breitscheid 2008 [Breitscheid (EDGB)] | |
| [Photo-ID: 452] © Karsten Palt 2007-08-18 | |

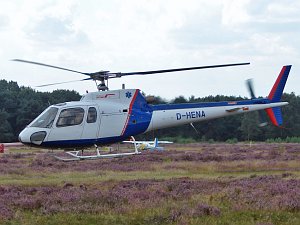

 | Eurocopter (Aerospatiale) AS-350B2 FJS-Helicopter Reg.: D-HENA c/n: 1781 |
| Flugplatzfest Bielefeld 2007 [Bielefeld (EDLI / BFE)] | |
| [Photo-ID: 2930] © Karsten Palt 2009-05-01 | |
 | Eurocopter AS-350B2 FJS-Helicopter Reg.: D-HFAX c/n: 2585 |
| Flugtag LSV-Wittlage 2009 [Bohmte-Bad Essen (EDXD)] | |
| [Photo-ID: 682] © Karsten Palt 2007-09-15 | |
 | Eurocopter (Aerospatiale) AS-350BA KMN Koopmann Helicopter Reg.: D-HKMG c/n: 2650 |
| Airport-Days 2007 [Hamburg-Fuhlsbüttel (EDDH / HAM)] | |
| [Photo-ID: 1764] © Karsten Palt 2009-04-03 | |
 | Eurocopter (Aerospatiale) AS-350BA Ecureuil Johann Lafer Heli Gourmet Reg.: D-HEPT c/n: 1237 |
| AERO Friedrichshafen 2009 [Friedrichshafen (EDNY / FDH)] | |
| [Photo-ID: 3285] © Karsten Palt 2010-06-18 | |
 | Eurocopter AS-550C-2 Fennec Royal Danish Air Force Reg.: P-288 c/n: 2288 |
| Luchtmachtdagen 2010 [Gilze-Rijen (EHGR)] | |
| [Photo-ID: 3286] © Karsten Palt 2010-06-18 | |
 | Eurocopter AS-550C-2 Fennec Royal Danish Air Force Reg.: P-552 c/n: 2352 |
| Luchtmachtdagen 2010 [Gilze-Rijen (EHGR)] | |
| [Photo-ID: 3084] © Hartmut Ehlers 2010-01-14 | |
 | Helibras HB-350 Esquilo (Aerospatiale AS-350B) Paraguay Air Force - Fuerza Aérea Paraguaya (FAP) Reg.: H-026 c/n: 1944/HB1088 |
| [Nu Guazu (Campo Grande), Asunción] | |
| [Photo-ID: 3085] © Hartmut Ehlers 2010-01-14 | |
 | Helibras HB-350 Esquilo (Aerospatiale AS-350B) Paraguay Air Force - Fuerza Aérea Paraguaya (FAP) Reg.: H-027 c/n: 1976/HB1092 Something missing? |
| [Nu Guazu (Campo Grande), Asunción] | |
