Short Brothers (Shorts) Short 360

Regional Airliner

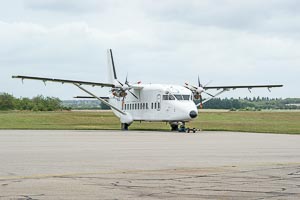

Short 360-300 Benair OY-MUG SH3716 © Karsten Palt
Photo ©: Karsten Palt
The Short 360 is a twin-engined regional airliner for up to 39 passengers produced by the British manufacturer Short Brothers plc. The Short 360 is approved under the designation SD3-60.
The Short 360 is a stretched development of the Short 330, itself a development of the S.C.7 Skyvan. The military versions C-23B+ and C-23C Sherpa, operated by the US-Army, are modified by replacement of the single-fin tail section with the twin-fin tail section including the cargo ramp of the Short 330.
Crew2
Passengers39
Propulsion2 Turboprop Engines
Engine ModelPratt & Whitney Canada PT6A-67R
Engine Power (each)1062 kW1424 shp
Speed400 km/h216 kts
  249 mph
Service Ceiling3.505 m11.500 ft
Range1.056 km570 NM
656 mi.
Empty Weight7.870 kg17.350 lbs
max. Takeoff Weight12.292 kg27.099 lbs
Wing Span22,80 m74 ft 10 in
Wing Area42,2 m454 ft
Length21,58 m70 ft 10 in
Height7,27 m23 ft 10 in
First Flight01.06.1981
Production Statusout of production
Total Production164
ICAO CodeSH36
IATA CodeSH6
other TCDSCAA UK BA11
Data for (Version)Shorts 360-300
VariantsShort 360-100, 360-200, 360-300, 360-300F, C-23B+ Sherpa, C-23C Sherpa

[Photo-ID: 5751] Karsten Palt 2011-06-30
Short 360-300, Benair, OY-MUG, c/n SH3716, Karsten Palt, 2011Short
360-300
Benair
Reg.: OY-MUG
c/n: SH3716

[Stauning Vestjylland Airport (EKVJ / STA)]
[Photo-ID: 5752] Karsten Palt 2011-06-30
Short 360-300, Benair, OY-PBW, c/n SH3760, Karsten Palt, 2011Short
360-300
Benair
Reg.: OY-PBW
c/n: SH3760

[Stauning Vestjylland Airport (EKVJ / STA)]
