Boeing 707

Airliner

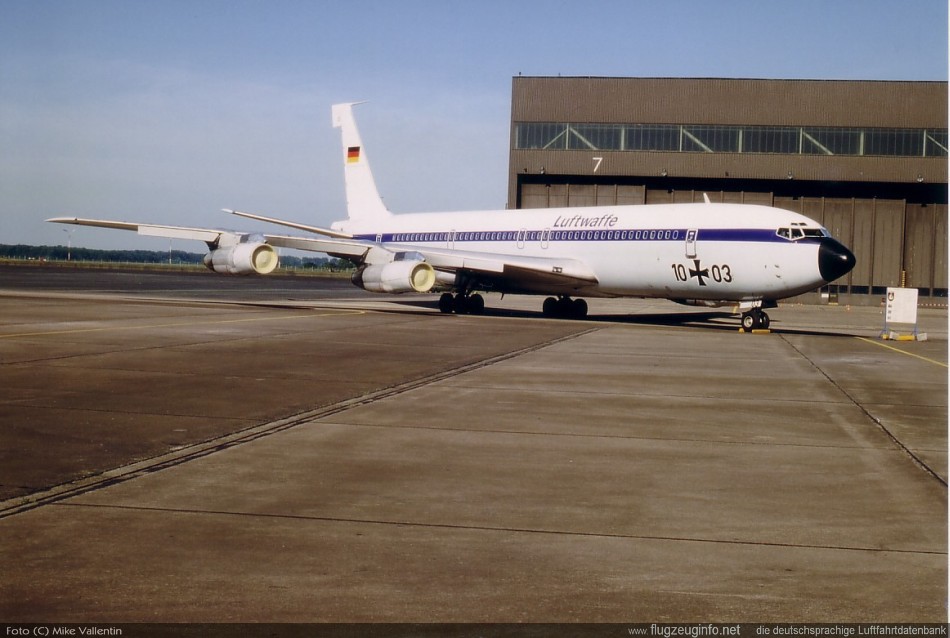

Boeing 707-320C © Mike Vallentin
Photo ©: Mike Vallentin
The Boeing 707 is a four-engined medium-to-long-range narrowbody airliner with a capacity of maximum 189 passengers produced by the American manufacturer Boeing Commercial Airplanes.
Crew3
Passengersmax. 189
Propulsion4 Turbofan Engines
Engine ModelPratt & Whitney JT3D-3B
Engine Power (each)80,1 kN18000 lbf
Speed1009 km/h545 kts
  627 mph
Service Ceiling12.802 m42.000 ft
Range9.260 km5.000 NM
5.754 mi.
Empty Weight67.495 kg148.800 lbs
max. Takeoff Weight151.381 kg333.600 lbs
max. Landing Weight97.522 kg215.000 lbs
Wing Span43,40 m142 ft 5 in
Wing Area283,0 m²3046 ft²
Length46,61 m152 ft 11 in
Height12,85 m42 ft 2 in
First Flight15.07.1954
Production Statusout of production
Production Range1958-1978
Total Production1010
ICAO CodeB701 B703 E6
IATA Code707 70F 70M
FAA TCDS4A21, 4A26
Data for (Version)Boeing 707-320B
Variants707-120, 707-138, 707-120B, 707-220, 707-320, 707-320B, 707-320C, 707-420, Boeing 720 (707-020), 720B (707-020B), C-137 Stratoliner

[Photo-ID: 10228] © Karsten Palt 2014-05-28
Boeing 367-80B, Boeing, N70700, c/n 17158,© Karsten Palt, 2014Boeing
367-80B
Boeing
Reg.: N70700
c/n: 17158

Boeing 707 prototype (Dash 80)
NASM Udvar Hazy Center [Chantilly, VA]
[Photo-ID: 10229] © Karsten Palt 2014-05-28
Boeing 367-80B, Boeing, N70700, c/n 17158,© Karsten Palt, 2014Boeing
367-80B
Boeing
Reg.: N70700
c/n: 17158

Boeing 707 prototype (Dash 80)
NASM Udvar Hazy Center [Chantilly, VA]
[Photo-ID: 2953] © Hartmut Ehlers 2010-01-14
Boeing 707-321B, Paraguay Air Force - Fuerza Aérea Paraguaya (FAP), 4001, c/n 18957 / 472,© Hartmut Ehlers, 2010Boeing
707-321B
Paraguay Air Force - Fuerza Aérea Paraguaya (FAP)
Reg.: 4001
c/n: 18957 / 472

Originally destined to become presidential aircraft, never used as such. Today training/instruction platform.
[Asunción International Airport (SGAS / ASU)]
[Photo-ID: 667] © Karsten Palt 2007-09-15
Boeing 707-430, Airport Hamburg, D-AFHG, c/n 17720 / 115,© Karsten Palt, 2007Boeing
707-430
Airport Hamburg
Reg.: D-AFHG
c/n: 17720 / 115

ex D-ABOD
Airport-Days 2007 [Hamburg-Fuhlsbüttel (EDDH / HAM)]
[Photo-ID: 11949] © Karsten Palt 2001-07-27
Boeing E-6B Mercury (707-300), United States Navy, 164409, c/n 24508 / 1005,© Karsten Palt, 2001Boeing
E-6B Mercury (707-300)
United States Navy
Reg.: 164409
c/n: 24508 / 1005

Royal International Air Tattoo 2001 [Royal Air Force Station Cottesmore (EGXJ)]
[Photo-ID: 10930] © Karsten Palt 2015-06-03
Boeing VC-137B (707-153B), United States Air Force (USAF), 58-6971, c/n 17926 / 40,© Karsten Palt, 2015Boeing
VC-137B (707-153B)
United States Air Force (USAF)
Reg.: 58-6971
c/n: 17926 / 40

Pima Air and Space Museum [Tucson, AZ]
[Photo-ID: 10931] © Karsten Palt 2015-06-03
Boeing VC-137B (707-153B), United States Air Force (USAF), 58-6971, c/n 17926 / 40,© Karsten Palt, 2015Boeing
VC-137B (707-153B)
United States Air Force (USAF)
Reg.: 58-6971
c/n: 17926 / 40

Pima Air and Space Museum [Tucson, AZ]
