Fairchild Model 24 (UC-61 Forwarder / Argus)

Light Utility Aircraft

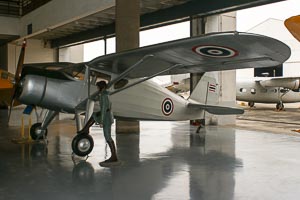

Fairchild F-24J Royal Thai Air Force (RTAF) S1 © Karsten Palt
Photo ©: Karsten Palt
The Fairchild Model 24 is a single-engine four-seat light utility aircraft produced by the US-American manufacturer Fairchild Aircraft. The Fairchild 24 (F-24) was also in service with British and United States Forces as the GK-1, UC-61 Forwarder and Argus.
Crew1
Passengers2-3
Propulsion1 Radial Engine
Engine ModelWarner R-500 Super Scarab
Engine Power108 kW145 hp
Speed209 km/h113 kts
  130 mph
Service Ceiling5.029 m16.500 ft
Range765 km413 NM
475 mi.
Empty Weight669 kg1.475 lbs
max. Takeoff Weight1.089 kg2.400 lbs
Wing Span11,07 m36 ft 4 in
Wing Area16,1 m²173 ft²
Length7,26 m23 ft 10 in
Height2,24 m7 ft 4 in
First Flight1932
Production Statusout of production
Production Range1932-1948
Total Production2232
ICAO CodeFA24
Data for (Version)Fairchild 24-G
VariantsF-24 C8, F-24 C8A, F-24 C8C, F-24 C8D, F-24 C8E, F-24 C8F, F-24 G, F-24 H, F-24 K, F-24 R9, F-24 W9, F-24 R40, F-24 W40, F-24 W41, F-24 R46, F-24 W46, UC-61, UC-61A, UC-61K Forward

next aircraft
[Photo-ID: 12427] © Karsten Palt 2016-04-12
Fairchild 24W-41A, , N37161, c/n W41A-206,© Karsten Palt, 2016Fairchild
24W-41A
Reg.: N37161
c/n: W41A-206

Museum of Flight [Seattle, WA]
[Photo-ID: 3237] © Karsten Palt 2010-01-31
Fairchild 24W-46, , NC8155, c/n W46251,© Karsten Palt, 2010Fairchild
24W-46
Reg.: NC8155
c/n: W46251

Flugwerft Schleißheim [Oberschleißheim (EDNX)]
[Photo-ID: 6690] © Karsten Palt 2013-05-17
Fairchild Argus Mk1 (24W-41A), , G-AIZE, c/n 565,© Karsten Palt, 2013Fairchild
Argus Mk1 (24W-41A)
Reg.: G-AIZE
c/n: 565

ex USAAF 43-14601, displayed in RAF c/s marked as FS628
Royal Air Force Museum Cosford [Shifnal, Shropshire]
[Photo-ID: 6691] © Karsten Palt 2013-05-17
Fairchild Argus Mk1 (24W-41A), , G-AIZE, c/n 565,© Karsten Palt, 2013Fairchild
Argus Mk1 (24W-41A)
Reg.: G-AIZE
c/n: 565

ex USAAF 43-14601, displayed in RAF c/s marked as FS628
Royal Air Force Museum Cosford [Shifnal, Shropshire]
[Photo-ID: 6431] © Karsten Palt 2013-02-09
Fairchild F-24J, Royal Thai Air Force (RTAF), S1, c/n ,© Karsten Palt, 2013Fairchild
F-24J
Royal Thai Air Force (RTAF)
Reg.: S1

Royal Thai Air Force Museum [Bangkok]
[Photo-ID: 7061] © Karsten Palt 2013-05-18
Fairchild UC-61A Argus Mk 2, , G-AJOZ, c/n 347,© Karsten Palt, 2013Fairchild
UC-61A Argus Mk 2
Reg.: G-AJOZ
c/n: 347

displayed as Royal Air Force FK338
Yorkshire Air Museum [Elvington]
[Photo-ID: 6526] © Karsten Palt 2013-04-01
Fairchild VC-61K Argus Mk 3 (24R-46A), United States Army, 43-14987, c/n 951,© Karsten Palt, 2013Fairchild
VC-61K Argus Mk 3 (24R-46A)
United States Army
Reg.: 43-14987
c/n: 951

ex F-BAMB, ex OO-LUT
Koninklijk Legermuseum [Brussel]
