Beech / Beechcraft 77 Skipper

Trainer

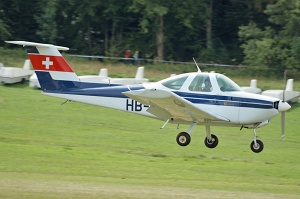

Beech BE 77 Skipper, HB-EJD, c/n WA-136 © Karsten Palt
Photo ©: Karsten Palt
The Beech Model 77 Skipper is a single engine training aircraft produced by the US-American manufacturer Beech Aircraft Corporation.
Crew1
Passengers1
Propulsion1 Piston Engine
Engine ModelLycoming O-235-L2C
Engine Power86 kW115 hp
max. Cruise Speed194 km/h105 kts
  121 mph
max. Speed (vne)265 km/h143 kts
  165 mph
Service Ceiling3.932 m12.900 ft
Rate of climb219 m/min720 ft/min
Range719 km388 NM
447 mi.
Empty Weight499 kg1.100 lbs
max. Takeoff Weight760 kg1.675 lbs
max. Landing Weight760 kg1.675 lbs
Wing Span9,14 m29 ft 12 in
Wing Area12,1 m130 ft
Length7,32 m24 ft 0 in
Height2,41 m7 ft 11 in
First Flight12.09.1978
Production Statusout of production
Production Range1979-1981
Total Production312
ICAO CodeBE77
FAA TCDSA30CE
Data for (Version)Beech 77 Skipper

[Photo-ID: 2574] Karsten Palt 2009-09-04

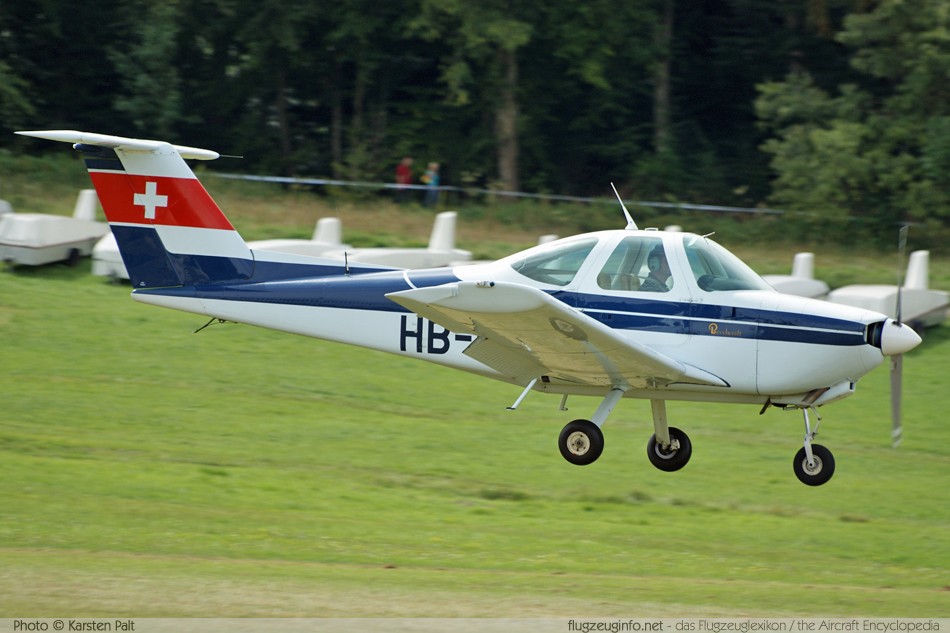

Beech BE 77 Skipper, , HB-EJD, c/n WA-136, Karsten Palt, 2009Beech
BE 77 Skipper
Reg.: HB-EJD
c/n: WA-136

Oldtimer-Fliegertreffen 2009 [Kirchheim unter Teck - Hahnweide (EDST)]
