Caudron G.4
Bomber / Reconnaissance Biplane
Photo ©: Karsten Palt
The Caudron G.4 is a twin-engined two-seat reconnaissance and bomber biplane aircraft produced by the French manufacturer Société des avions Caudron.
| Crew | 2 | |
| Propulsion | 2 Rotary Engines | |
| Engine Model | Le Rhône 9C | |
| Engine Power (each) | 60 kW | 80 hp |
| Speed | 131 km/h | 71 kts 82 mph |
| Service Ceiling | 4.300 m | 14.108 ft |
| Range | 400 km | 216 NM 249 mi. |
| Empty Weight | 500 kg | 1.102 lbs |
| max. Takeoff Weight | 1.330 kg | 2.932 lbs |
| Wing Span | 17,20 m | 56 ft 5 in |
| Wing Area | 36,8 m² | 396 ft² |
| Length | 7,27 m | 23 ft 10 in |
| Height | 2,60 m | 8 ft 6 in |
| First Flight | 03/1915 | |
| Production Status | out of production | |
| Total Production | 1421 | |
| Developed from | Caudron G.3 | |
| Data for (Version) | Caudron G.4 | |

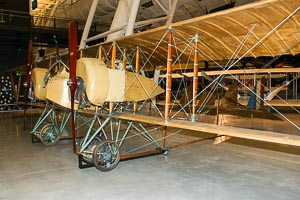

| [Photo-ID: 10240] © Karsten Palt 2014-05-28 | |
 | Caudron G.4 French Air Force / Armee de l Air Reg.: C4263 |
| NASM Udvar Hazy Center [Chantilly, VA] | |
| [Photo-ID: 10241] © Karsten Palt 2014-05-28 | |
 | Caudron G.4 French Air Force / Armee de l Air Reg.: C4263 |
| NASM Udvar Hazy Center [Chantilly, VA] | |
