Curtiss-Wright CW-1 Junior

Sport Aircraft

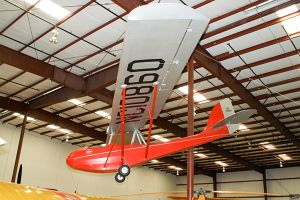

Curtiss-Wright CW-1 Junior, NC10860, c/n 1086, Yanks Air Museum © Karsten Palt
Photo ©: Karsten Palt
The Curtiss-Wright CW-1 Junior is a single-engine two-seat light sports aircraft produced by the US-American manufacturer Curtiss-Wright Airplane Company. It was designed by Curtiss-Robertson as the CR-1 Skeeter.
Crew1
Passengers1
Propulsion1 Radial Engine
Engine ModelSzekely SR3-O
Engine Power34 kW46 hp
max. Cruise Speed106 km/h57 kts
  66 mph
max. Speed (vne)148 km/h80 kts
  92 mph
Service Ceiling3.658 m12.000 ft
Rate of climb177 m/min580 ft/min
Range241 km130 NM
150 mi.
Empty Weight272 kg600 lbs
max. Takeoff Weight442 kg974 lbs
Wing Span12,04 m39 ft 6 in
Wing Area16,4 m177 ft
Length6,48 m21 ft 3 in
Height2,24 m7 ft 4 in
First Flight05.10.1930
Production Statusout of production
Production Range1931-1932
Total Production> 270
FAA TCDSATC397
Data for (Version)Curtiss-Wright CW-1

[Photo-ID: 6277] Karsten Palt 2012-06-12
Curtiss-Wright CW-1 Junior, , NC10860, c/n 1086, Karsten Palt, 2012Curtiss-Wright
CW-1 Junior
Reg.: NC10860
c/n: 1086

flyable
Yanks Air Museum [Chino, CA]
[Photo-ID: 6278] Karsten Palt 2012-06-12
Curtiss-Wright CW-1 Junior, , NC10860, c/n 1086, Karsten Palt, 2012Curtiss-Wright
CW-1 Junior
Reg.: NC10860
c/n: 1086

flyable
Yanks Air Museum [Chino, CA]
[Photo-ID: 10259] Karsten Palt 2014-05-28
Curtiss-Wright CW-1 Junior, , NC10965, c/n , Karsten Palt, 2014Curtiss-Wright
CW-1 Junior
Reg.: NC10965

NASM Udvar Hazy Center [Chantilly, VA]
