Extra Aircraft EA-200 (EA 300/200)

Aerobatic Aircraft / Trainer

Extra EA.200 F-HUME © Karsten Palt
Photo ©: Karsten Palt
The Extra 200 is a single-engine two-seat aerobatic trainer produced by the German manufacturer Extra Aircraft (Extra Flugzeugbau GmbH, today Extra Flugzeugproduktions- und Vertriebs-GmbH).
The Extra EA-200 is a smaller, lower powered and less cost expensive development of the Extra EA-300.
Crew1
Passengers1
Propulsion1 Piston Engine
Engine ModelLycoming AEIO-360-A1E
Engine Power149 kW200 hp
max. Cruise Speed285 km/h154 kts
  177 mph
max. Speed (vne)402 km/h217 kts
  250 mph
Service Ceiling4.877 m16.000 ft
Rate of climb686 m/min2250 ft/min
Range500 km270 NM
311 mi.
Empty Weight562 kg1.240 lbs
max. Takeoff Weight840 kg1.852 lbs
Wing Span7,50 m24 ft 7 in
Wing Area10,4 m112 ft
Length6,51 m21 ft 4 in
Height2,62 m8 ft 7 in
First Flight04/1996
Production Statusin production
Developed fromExtra EA-300
ICAO CodeE200 E230
FAA TCDSA67EU
EASA TCDSA.362
Data for (Version)Extra EA-200 (EA 300/200)

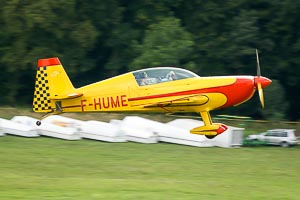

[Photo-ID: 7296] Karsten Palt 2013-09-06
Extra EA.200, , F-HUME, c/n , Karsten Palt, 2013Extra
EA.200
Reg.: F-HUME

Oldtimer-Fliegertreffen 2013 [Kirchheim unter Teck - Hahnweide (EDST)]
