Fairchild-Hiller FH-1100

Light Utility Helicopter

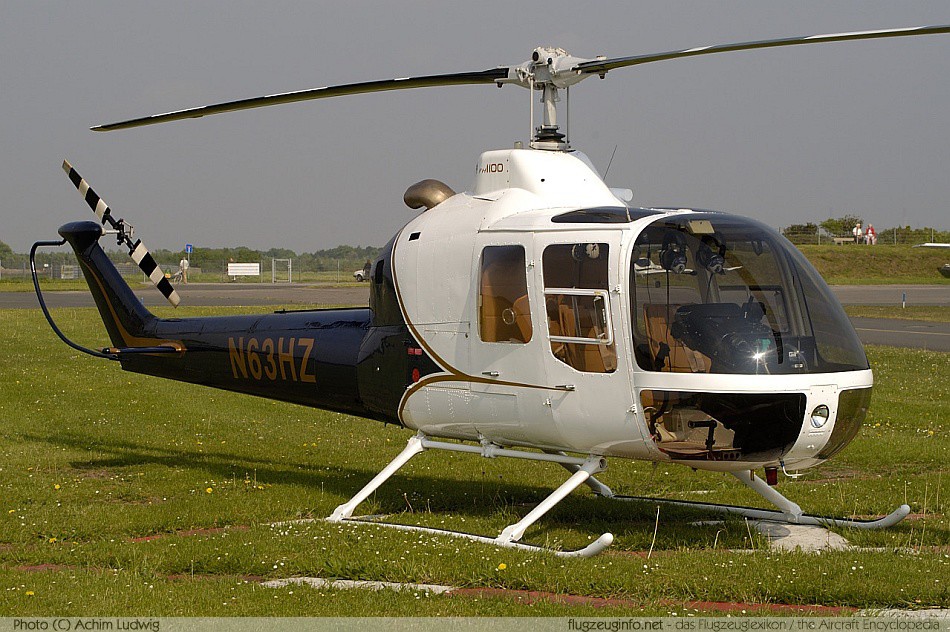

Fairchild Hiller FH-1100 © Achim Ludwig
Photo ©: Achim Ludwig (Photos at airliners.net)
The Fairchild-Hiller FH-1100 is a light single-engine four-seat utility helicopter produced by the US-American manufacturer Fairchild-Hiller.
Crew1-2
Passengers2-3
Propulsion1 Turboshaft Engine
Engine ModelAllison 250-C18
Engine Power204 kW274 shp
Speed204 km/h110 kts
  127 mph
Service Ceiling6.553 m21.500 ft
Range693 km374 NM
430 mi.
Empty Weight687 kg1.515 lbs
max. Takeoff Weight1.247 kg2.750 lbs
Rotor Blades (main/tail)2/2
Main Rotor Diameter10,79 m35 ft 5 in
Tail Rotor Diameter1,83 m6 ft 0 in
Rotor Disc Area91,4 m²984 ft²
Length (Fuselage)9,08 m29 ft 9 in
Length11,97 m39 ft 3 in
Height2,83 m9 ft 3 in
First Flight21.01.1963
Production Statusout of production
Production Range1966-1973
Total Production254
ICAO CodeFH11
Data for (Version)Fairchild-Hiller FH-1100
