Focke-Wulf Fw 200 Condor

Airliner / Maritime Patrol Aircraft

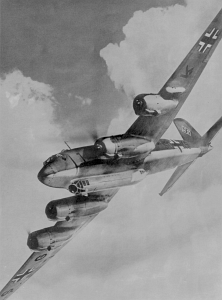

Focke-Wulf Fw 200 Condor ©
The Focke-Wulf Fw 200 Condor is a four-engine medium-range airliner with a capacity of max. 25 passengers produced by the German manufacturer Focke-Wulf Flugzeugbau GmbH, designed by Kurt Tank. The Fw 200 in service with the German Luftwaffe was used as a long-range maritime-patrol aircraft, transport aircraft and as a bomber.
Crew2
Passengers25
Propulsion4 Radial Engines
Engine ModelBMW-Bramo 323R-2 Fafnir
Engine Power (each)882 kW1183 hp
Speed359 km/h194 kts
  223 mph
Service Ceiling5.800 m19.029 ft
Range3.556 km1.920 NM
2.210 mi.
Empty Weight12.950 kg28.550 lbs
max. Takeoff Weight22.700 kg50.045 lbs
Wing Span32,85 m107 ft 9 in
Wing Area119,9 m1291 ft
Length23,45 m76 ft 11 in
Height6,30 m20 ft 8 in
First Flight27.07.1937
Production Statusout of production
Total Production276
Data for (Version)Focke-Wulf Fw 200C-3/U4 Condor
VariantsFw 200 V1, Fw 200 V10, Fw 200 A-0, B-1, B-2, C-0, C-1, C-2, C-3, C-3/U1, C-3/U2, C-3/U3, C-3/U4, C-4, C-4/U1, C-4/U2, C-6, C-8, S-1
