Fokker Eindecker III (E.III)

Fighter

Fokker E.III Eindecker Deutsches Kaiserreichs 603/15 Replica © Karsten Palt

Photo ©: Karsten Palt

The Fokker Eindecker E.III is a single-engine single-seat fighter aircraft produced by the German manufacturer Fokker Aeroplanbau GmbH. The E.III is the main variant of the Eindecker series.

Crew

Propulsion	1 Rotary Engine
Engine Model	Oberursel U.I
Engine Power	75 kW	100 hp

Speed	141 km/h	76 kts 87 mph
Service Ceiling	3.600 m	11.811 ft
Range	359 km	194 NM 223 mi.

Empty Weight	400 kg	882 lbs
max. Takeoff Weight	610 kg	1.345 lbs

Wing Span	9,52 m	31 ft 3 in
Wing Area	16,0 m²	172 ft²
Length	7,20 m	23 ft 7 in
Height	2,40 m	7 ft 10 in

First Flight	1915
Production Status	out of production
Total Production	249

Data for (Version)

Fokker E.III

[Photo-ID: 1977] © Karsten Palt 2009-04-04
	Fokker E.III Eindecker Replica
Luftfahrtmuseum Manfred Pflumm [Schwenningen (EDTS)]

[Photo-ID: 12431] © Karsten Palt 2016-04-12
	Fokker E.III Eindecker Replica
Museum of Flight [Seattle, WA]

[Photo-ID: 13424] © Karsten Palt 2016-09-10
	Fokker E.III Eindecker Reg.: D-MWCJ Replica
Oldtimer-Fliegertreffen 2016 [Kirchheim unter Teck - Hahnweide (EDST)]

[Photo-ID: 227] © Karsten Palt 2006-11-17
	Fokker E.III Eindecker Luftstreitkräfte des Deutschen Kaiserreichs Replica
Luftfahrtmuseum Laatzen-Hannover [Laatzen]

[Photo-ID: 228] © Karsten Palt 2006-11-17
	Fokker E.III Eindecker Luftstreitkräfte des Deutschen Kaiserreichs Replica
Luftfahrtmuseum Laatzen-Hannover [Laatzen]

[Photo-ID: 6162] © Karsten Palt 2012-06-14
	Fokker E.III Eindecker Luftstreitkräfte des Deutschen Kaiserreichs Reg.: 246 c/n: n/a, Replica Replica
San Diego Air and Space Museum [San Diego, CA]

[Photo-ID: 3509] © Karsten Palt 2010-06-12

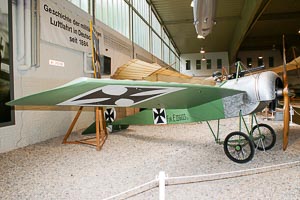

	Fokker E.III Eindecker Luftstreitkräfte des Deutschen Kaiserreichs Reg.: 603/15 c/n: n/a, replica Replica
Luftwaffenmuseum [Berlin - Gatow]
