Hawker-Beechcraft (Raytheon) Hawker 4000 (Horizon)

Corporate Jet

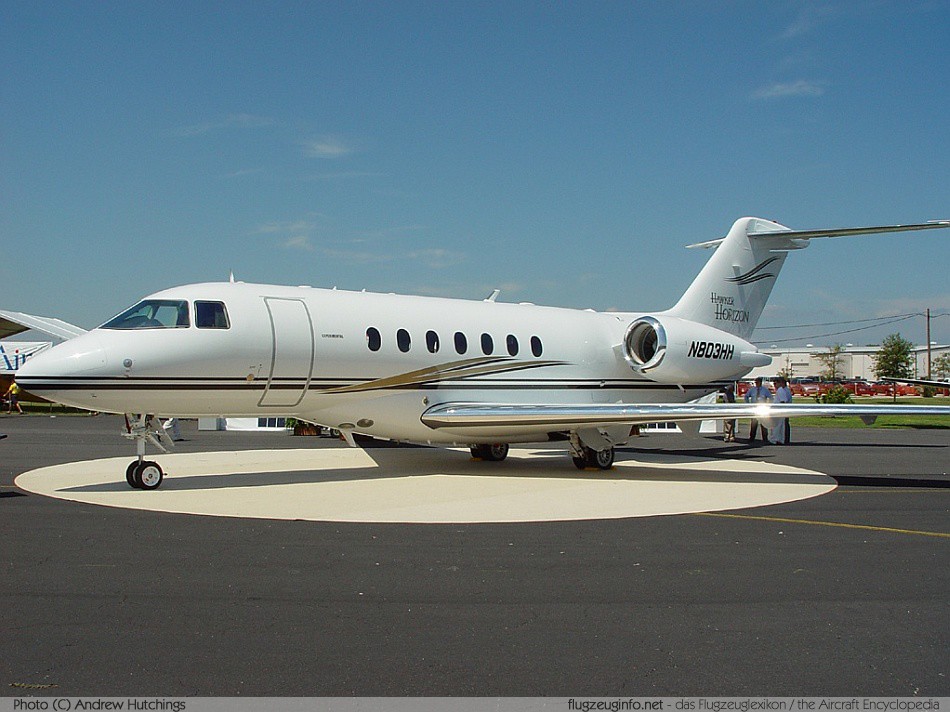

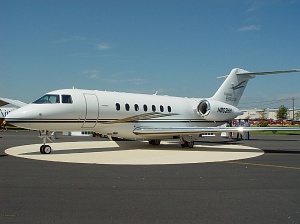

Raytheon 4000 Hawker Horizon © Andrew Hutchings
Photo ©: Andrew Hutchings (Photos at airliners.net)
The Hawker-Beechcraft Hawker 4000, initially known as the Hawker Horizon is a twin-engined corporate jet aircraft for eight to ten passengers produced by the US-American manufacturer Hawker Beechcraft.
Crew2
Passengers8-12
Propulsion2 Turbofan Engines
Engine ModelPratt & Whitney Canada PW308A
Engine Power (each)28,9 kN6500 lbf
Speed870 km/h470 kts
  541 mph
Mmo (max. Mach)Mach 0.84
Service Ceiling13.716 m45.000 ft
Range5.287 km2.855 NM
3.285 mi.
Empty Weight9.877 kg21.775 lbs
max. Takeoff Weight17.010 kg37.500 lbs
Wing Span18,82 m61 ft 9 in
Wing Area49,3 m531 ft
Length21,08 m69 ft 2 in
Height5,97 m19 ft 7 in
First Flight11.08.2001
Production Statusin production
ICAO CodeHA4T
FAA TCDST00013WI
EASA TCDSIM.A.172
Data for (Version)Hawker 4000
