Hirth Hi 27 Acrostar

Aerobatic Aircraft

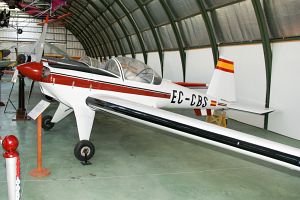

Hirth Hi 27 Acrostar Mk.II, EC-CBS, c/n 4008, Museo del Aire Madrid © Karsten Palt
Photo ©: Karsten Palt
The Hirth Hi 27 Acrostar is a single-engine single-seat aerobatic aircraft produced by the German manufacturer Wolf Hirth GmbH.
Crew1
Propulsion1 Piston Engine
Engine ModelFranklin 6A-350-C1
Engine Power164 kW220 hp
max. Cruise Speed320 km/h173 kts
  199 mph
max. Speed (vne)350 km/h189 kts
  217 mph
Service Ceiling7.500 m24.606 ft
Range620 km335 NM
386 mi.
Empty Weight485 kg1.069 lbs
max. Takeoff Weight750 kg1.653 lbs
Wing Span8,28 m27 ft 2 in
Wing Area10,3 m111 ft
Length6,11 m20 ft 1 in
Height1,78 m5 ft 10 in
First Flight16.04.1970
Production Statusout of production
Total Production10
ICAO CodeHI27
other TCDSLBA 1006/SA
Data for (Version)Hirth Hi 27 MK II

[Photo-ID: 10684] Karsten Palt 2014-10-23
Hirth Hi 27 Acrostar Mk.II, , EC-CBS, c/n 4008, Karsten Palt, 2014Hirth
Hi 27 Acrostar Mk.II
Reg.: EC-CBS
c/n: 4008

Museo del Aire [Madrid]
