Junkers F 13
Passenger Aircraft
Photo ©: Karsten Palt
The Junkers F 13 is a single-engine six-seat passenger aircraft produced by the German manufacturer Junkers Flugzeugwerk AG.
The Junkers F 13 was the world's first all-metal passenger aircraft. The F 13 was available as a float plane also. The F 13 was also assembled in the United States of America and the former Soviet Union (as Junker Ju 13).
| Crew | 2 | |
| Passengers | 4 | |
| Propulsion | 1 Piston Engine | |
| Engine Model | BMW IIIa | |
| Engine Power | 136 kW | 182 hp |
| Speed | 170 km/h | 92 kts 106 mph |
| Service Ceiling | 4.600 m | 15.092 ft |
| Range | 1.200 km | 648 NM 746 mi. |
| Empty Weight | 1.050 kg | 2.315 lbs |
| max. Takeoff Weight | 1.640 kg | 3.616 lbs |
| Wing Span | 14,82 m | 48 ft 7 in |
| Wing Area | 34,5 m² | 371 ft² |
| Length | 9,59 m | 31 ft 6 in |
| Height | 4,10 m | 13 ft 5 in |
| First Flight | 25. Jun. 1916 | |
| Production Status | out of production | |
| Production Range | 1919-1932 | |
| Total Production | 322 | |
| Data for (Version) | Junkers F 13 | |
| [Photo-ID: 10819] © Karsten Palt 2015-04-04 | |
 | Junkers F 13 |
| Musee de l Air et de l Espace [Paris Le Bourget] | |
| [Photo-ID: 10820] © Karsten Palt 2015-04-04 | |
 | Junkers F 13 |
| Musee de l Air et de l Espace [Paris Le Bourget] | |
| [Photo-ID: 10821] © Karsten Palt 2015-04-04 | |
 | Junkers F 13 |
| Musee de l Air et de l Espace [Paris Le Bourget] | |
| [Photo-ID: 3144] © Karsten Palt 2010-01-31 | |

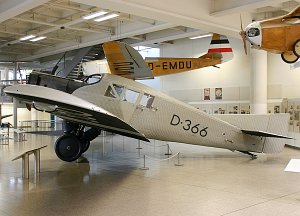

 | Junkers F 13 Reg.: D-366 c/n: 2018 |
| Deutsches Museum [Munich / München] | |
| [Photo-ID: 3145] © Karsten Palt 2010-01-31 | |
 | Junkers F 13 Reg.: D-366 c/n: 2018 |
| Deutsches Museum [Munich / München] | |
| [Photo-ID: 229] © Karsten Palt 2006-11-17 | |
 | Junkers F 13A Replica |
| Luftfahrtmuseum Laatzen-Hannover [Laatzen] | |
