Max Holste M.H.1521 Broussard

Utility / Observation Aircraft

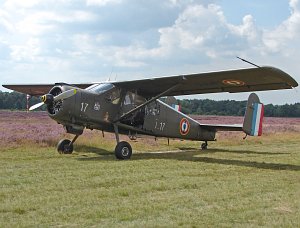

Max Holste MH-1521M Broussard F-GJJM © Karsten Palt
Photo ©: Karsten Palt
The Max Holste M.H.1521 Broussard is a single engine six-seat STOL utility airplane produced by the French manufacturer Societe des Avions Max Holste. It was developed for the French Army as a light liaison and observation aircraft.
Crew1
Passengers5
Propulsion1 Radial Engine
Engine ModelPratt & Whitney R-985-AN-1 Wasp Junior
Engine Power336 kW450 hp
Speed270 km/h146 kts
  168 mph
Service Ceiling5.486 m18.000 ft
Range1.259 km680 NM
783 mi.
Empty Weight1.530 kg3.373 lbs
max. Takeoff Weight2.500 kg5.512 lbs
Wing Span13,75 m45 ft 1 in
Wing Area25,2 m²271 ft²
Length8,65 m28 ft 5 in
Height3,65 m11 ft 12 in
First Flight12.06.1951
Production Statusout of production
Production Range1954-1959
Total Production366
ICAO CodeBROU
Data for (Version)Max Holste M.H.1521 Broussard

next aircraft
[Photo-ID: 454] © Karsten Palt 2007-08-18
Max Holste MH-1521 Broussard, , F-GJJM, c/n 292,© Karsten Palt, 2007Max Holste
MH-1521 Broussard
Reg.: F-GJJM
c/n: 292

Flugplatzfest Bielefeld 2007 [Bielefeld (EDLI / BFE)]
[Photo-ID: 577] © Karsten Palt 2007-09-08
Max Holste MH-1521 Broussard, , F-GJJM, c/n 292,© Karsten Palt, 2007Max Holste
MH-1521 Broussard
Reg.: F-GJJM
c/n: 292

Oldtimer-Fliegertreffen 2007 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 578] © Karsten Palt 2007-09-08
Max Holste MH-1521 Broussard, , F-GJJM, c/n 292,© Karsten Palt, 2007Max Holste
MH-1521 Broussard
Reg.: F-GJJM
c/n: 292

Oldtimer-Fliegertreffen 2007 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 2570] © Karsten Palt 2009-09-04
Max Holste MH-1521 Broussard, , F-GJJM, c/n 292,© Karsten Palt, 2009Max Holste
MH-1521 Broussard
Reg.: F-GJJM
c/n: 292

Oldtimer-Fliegertreffen 2009 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 6637] © Karsten Palt 2013-05-19
Max Holste MH-1521 Broussard, , G-CBGL, c/n 3303,© Karsten Palt, 2013Max Holste
MH-1521 Broussard
Reg.: G-CBGL
c/n: 3303

ex F-BMJO, in Portuguese Air Force c/s, ex French Air Force 19
Cold War Jets Collection [Bruntingthorpe, Leicestershire]
[Photo-ID: 7448] © Karsten Palt 2013-09-07
Max Holste MH-1521M Broussard, , F-GIBN, c/n 261,© Karsten Palt, 2013Max Holste
MH-1521M Broussard
Reg.: F-GIBN
c/n: 261

Oldtimer-Fliegertreffen 2013 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 7723] © Karsten Palt 2013-08-10
Max Holste MH-1521M Broussard, , F-GIBN, c/n 261,© Karsten Palt, 2013Max Holste
MH-1521M Broussard
Reg.: F-GIBN
c/n: 261

Flugtage Bautzen 2013 [Bautzen (EDAB)]
