Rumpler C.IV
Reconnaissance Biplane
Photo ©: Karsten Palt
The Rumpler C.IV is a single-engine two-seat reconnaissance biplane aircraft produced by the German manufacturer Rumpler Flugzeugwerke.
| Crew | 2 | |
| Propulsion | 1 Piston Engine | |
| Engine Model | Daimler Mercedes D.IVa | |
| Engine Power | 191 kW | 256 hp |
| Speed | 170 km/h | 92 kts 106 mph |
| Service Ceiling | 6.400 m | 20.997 ft |
| Range | 580 km | 313 NM 360 mi. |
| Empty Weight | 1.080 kg | 2.381 lbs |
| max. Takeoff Weight | 1.530 kg | 3.373 lbs |
| Wing Span | 12,65 m | 41 ft 6 in |
| Wing Area | 33,5 m² | 361 ft² |
| Length | 8,40 m | 27 ft 7 in |
| Height | 3,25 m | 10 ft 8 in |
| First Flight | 1916 | |
| Production Status | out of production | |
| Production Range | 1917-1918 | |
| Developed from | Rumpler C.III | |
| Data for (Version) | Rumpler C.IV | |
| Variants | Pfalz C.I, Rumpler 6B2 | |
| [Photo-ID: 3174] © Karsten Palt 2010-01-31 | |

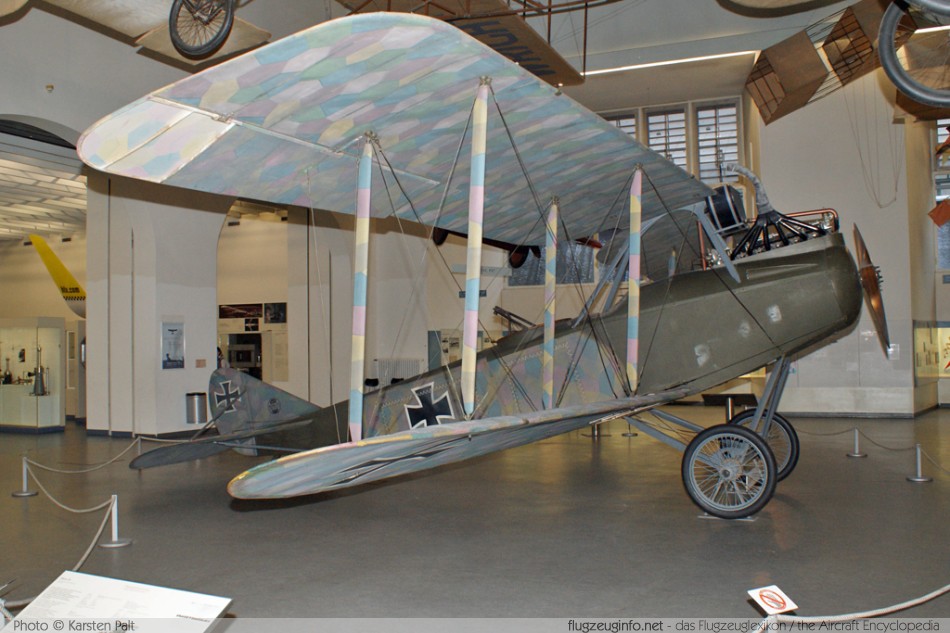

 | Rumpler C.IV Luftstreitkräfte des Deutschen Kaiserreichs Original aircraft |
| Deutsches Museum [Munich / München] | |
| [Photo-ID: 3175] © Karsten Palt 2010-01-31 | |
 | Rumpler C.IV Luftstreitkräfte des Deutschen Kaiserreichs Original aircraft |
| Deutsches Museum [Munich / München] | |
