Cessna 336 / 337 Skymaster
Photo ©: Jenny Coffey (photos at airliners.net)
336 / 337 Skymaster
Light Utility Aircraft

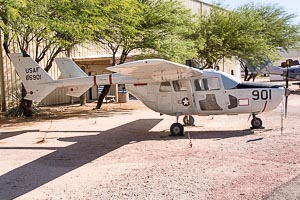

The Cessna 336 & 337 Skymaster is a twin-engined six-seat light utility aircraft produced by the US-American manufacturer Cessna Aircraft Company. The US Air Force military variant of the Cessna 337M was designated O-2.
| Crew | 1 | |
| Passengers | 5 | |
| Propulsion | 2 Piston Engines | |
| Engine Model | Continental IO-360-GB | |
| Engine Power (each) | 157 kW | 210 hp |
| max. Cruise Speed | 306 km/h | 165 kts 190 mph |
| max. Speed (vne) | 367 km/h | 198 kts 228 mph |
| Service Ceiling | 5.486 m | 18.000 ft |
| Rate of climb | 335 m/min | 1100 ft/min |
| Range | 1.704 km | 920 NM 1.059 mi. |
| Empty Weight | 1.264 kg | 2.787 lbs |
| max. Takeoff Weight | 2.100 kg | 4.630 lbs |
| Wing Span | 11,63 m | 38,2 ft |
| Wing Area | 18,7 m² | 201 ft² |
| Length | 9,07 m | 29,8 ft |
| Height | 2,79 m | 9,2 ft |
| First Flight | 28.02.1961 | |
| Production Status | out of production | |
| Total Production | 2821 | |
| ICAO Code | C336 / C337 | |
| FAA TCDS | A2CE, A6CE | |
| Data for (Version) | Cessna 337F Super Skymaster | |
| Variants | 336, 337, 337A, 337B, 337C, 337D, 337E, 337F, 337G, 337H, O-2A, O-2B, Lynx, T337B, P337G, T337H-SP, F337E, F337F, F337G, FTB337G | |
Remarks
The unusual push-pull engine configuration eliminated asymmetric handling problems (Centre Line Thrust). The fixed landing gear equipped Cessna 336 was in production from 1962 until 1964 with 195 produced aircraft. The Skymaster was also produced by Reims of France including the Reims developed military variant FTB337G Milirole.
The unusual push-pull engine configuration eliminated asymmetric handling problems (Centre Line Thrust). The fixed landing gear equipped Cessna 336 was in production from 1962 until 1964 with 195 produced aircraft. The Skymaster was also produced by Reims of France including the Reims developed military variant FTB337G Milirole.
