Sopwith Camel F.1 / 2F.1

Fighter Biplane

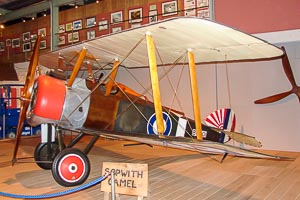

Sopwith Camel B6401 Replica © Karsten Palt
Photo ©: Karsten Palt
The Sopwith Camel is a single-engine single-seat fighter biplane aircraft produced by the British manufacturer Sopwith Aviation Company.
The Sopwith Camel F.1 was the main production variant. The Sopwith Camel 2F.1 was a naval shipboard fighter aircraft variant.
Crew1
Propulsion1 Rotary Engine
Engine ModelClerget Type 9B
Engine Power97 kW130 hp
Speed185 km/h100 kts
  115 mph
Service Ceiling5.791 m19.000 ft
Range230 km124 NM
143 mi.
Empty Weight421 kg928 lbs
max. Takeoff Weight659 kg1.453 lbs
Wing Span8,53 m27 ft 12 in
Wing Area21,5 m²231 ft²
Length5,72 m18 ft 9 in
Height2,59 m8 ft 6 in
First Flight12/1916
Production Statusout of production
Total Production5490
Developed fromSopwith Pup
ICAO CodeCAML
Data for (Version)Sopwith F.1 Camel
VariantsCamel F.1, Camel 2F.1

[Photo-ID: 1113] © Karsten Palt 2008-07-13
Sopwith Camel, , B6401, c/n ,© Karsten Palt, 2008Sopwith
Camel
Reg.: B6401

Replica
Fleet Air Arm Museum [Yeovilton]
[Photo-ID: 235] © Karsten Palt 2006-11-17
Sopwith F.1 Camel, , , c/n ,© Karsten Palt, 2006Sopwith
F.1 Camel

Replica
Luftfahrtmuseum Laatzen-Hannover [Laatzen]
[Photo-ID: 5498] © Karsten Palt 2012-01-11
Sopwith F.1 Camel, , F6034, c/n ,© Karsten Palt, 2012Sopwith
F.1 Camel
Reg.: F6034

Replica, displayed as RAF aircraft
National Museum of the United States Air Force [Dayton, Ohio / USA (Wright-Patterson AFB)]
[Photo-ID: 12472] © Karsten Palt 2016-04-12
Sopwith F.1 Camel, , NX6330, c/n ,© Karsten Palt, 2016Sopwith
F.1 Camel
Reg.: NX6330

Replica
Museum of Flight [Seattle, WA]
[Photo-ID: 6571] © Karsten Palt 2013-04-01
Sopwith F.1 Camel, Belgian Air Force, B5747, c/n ,© Karsten Palt, 2013Sopwith
F.1 Camel
Belgian Air Force
Reg.: B5747

Koninklijk Legermuseum [Brussel]
[Photo-ID: 1205] © Karsten Palt 2008-07-16
Sopwith F.1 Camel, Royal Air Force, F6314, c/n ,© Karsten Palt, 2008Sopwith
F.1 Camel
Royal Air Force
Reg.: F6314

Royal Air Force Museum [London-Hendon]
