SOCATA TB10 Tobago

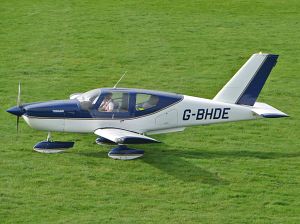

Photo ©: Robert Beaver (Photos at airliners.net)
TB10 Tobago
Touring Aircraft
The SOCATA TB10 Tobago is a fixed-gear four to five seat single-engine touring aircraft produced by the French manufacturer SOCATA (Societe de Construction d'Avions de Tourisme et d'Affaires). It belongs to the SOCATA TB (Caribbean) series of light touring aircrafts, together with the TB9 Tampico and the TB20 Trinidad.
| Crew | 1 | |
| Passengers | 4 | |
| Propulsion | 1 Piston Engine | |
| Engine Model | Lycoming O-360-A-1 | |
| Engine Power | 134 kW | 180 hp |
| Speed | 235 km/h | 127 kts 146 mph |
| Service Ceiling | 3.962 m | 13.000 ft |
| Range | 1.291 km | 697 NM 802 mi. |
| Empty Weight | 730 kg | 1.610 lbs |
| max. Takeoff Weight | 1.150 kg | 2.535 lbs |
| Wing Span | 10,04 m | 32,9 ft |
| Wing Area | 11,9 m² | 128 ft² |
| Length | 7,75 m | 25,4 ft |
| Height | 3,02 m | 9,9 ft |
| First Flight | 23.02.1977 | |
| Production Status | out of production | |
| Data for (Version) | Socata TB10 Tobago GT | |
| Extras | |
print view| [Photo-ID: 2221] © Karsten Palt 2009-06-01 | |

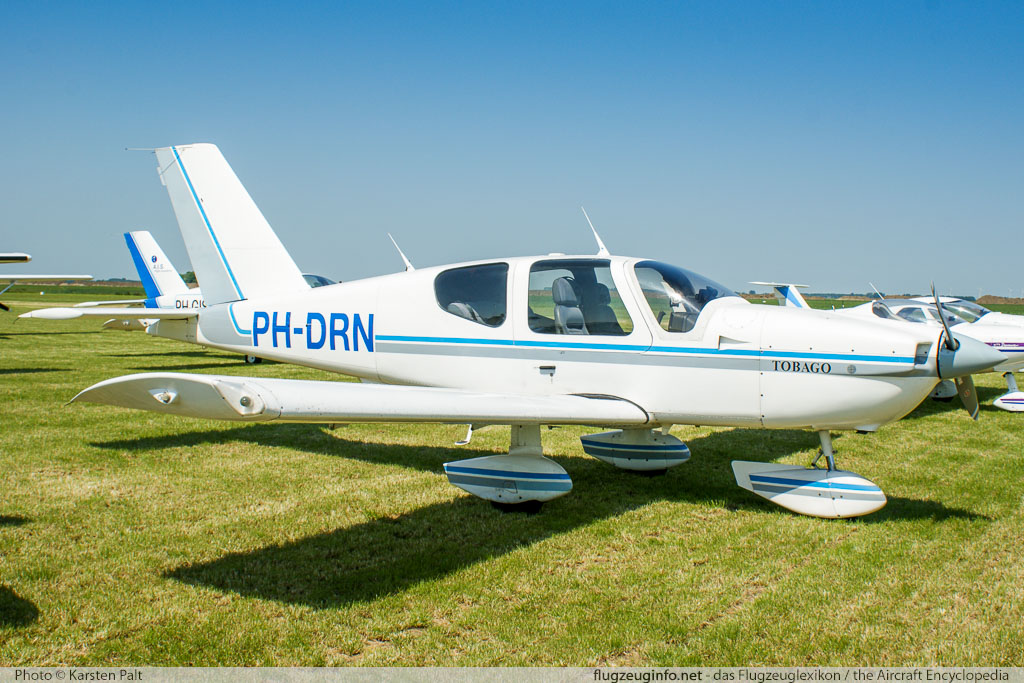

 | SOCATA TB-10 Tobago Reg.: PH-DRN c/n: 1135 |
| Oostwold Airport Airshow 2009 [Oostwold - Groningen Airport (EHOW)] | |
| [Photo-ID: 239] © Karsten Palt 2007-02-16 | |
 | SOCATA TB-10 Tobago GT Martinair Vliegschool Reg.: PH-MLQ c/n: 2155 |
| [Wilhelmshaven-Mariensiel (EDWI / WVN)] | |
