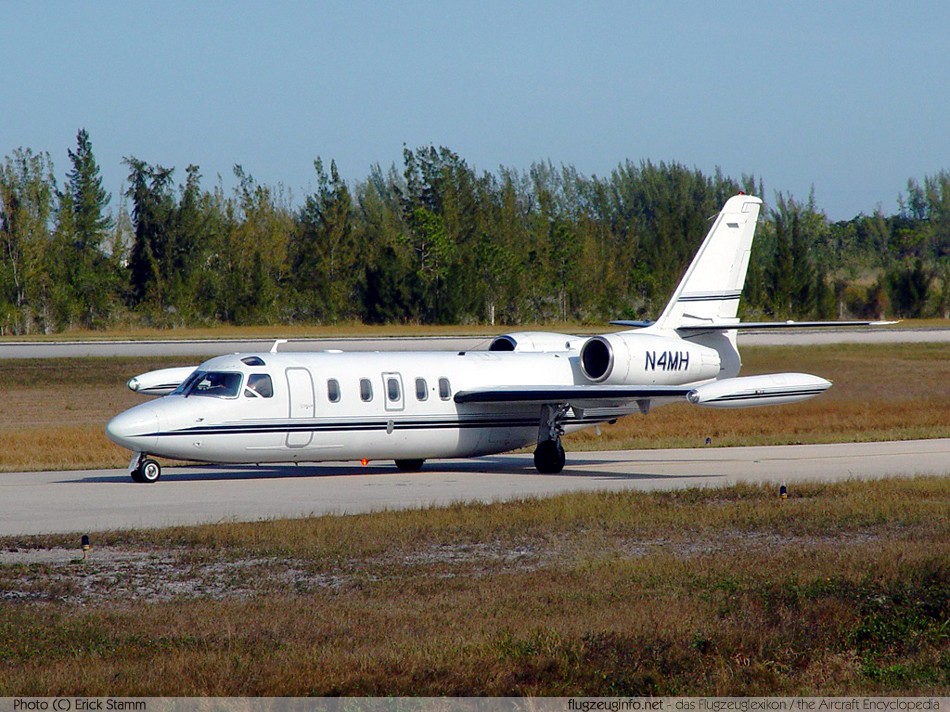

IAI Israel Aircraft Industries IAI-1123 / IAI-1124 Westwind
Corporate Jet
The IAI Westwind is a twin-engined corporate jet aircraft for max. ten passengers produced by the Israeli manufacturer Israel Aircraft Industries.
The IAI Westwind is a development of the Aero Commander/Rockwell 1121 Jet Commander. The IAI-1123 Westwind is powered by Turbojet Engines.
| Propulsion | 2 Turbofan Engines |
| Engine Model | Garrett TFE731-3-1G |
| Engine Power (each) | 16,5 kN | 3700 lbf |
| Speed | 741 km/h | 400 kts
460 mph |
| Service Ceiling | 13.716 m | 45.000 ft |
| Range | 4.430 km | 2.392 NM
2.753 mi. |
| Empty Weight | 5.579 kg | 12.300 lbs |
| max. Takeoff Weight | 10.659 kg | 23.500 lbs |
| Wing Span | 13,65 m | 44 ft 9 in |
| Wing Area | 28,6 m² | 308 ft² |
| Length | 15,93 m | 52 ft 3 in |
| Height | 4,81 m | 15 ft 9 in |
| First Flight | 02.01.1963 (Jet Commander) |
| Production Status | out of production |
| Total Production | 250 |
| Developed from | North American / Rockwell Jet Commander |
| ICAO Code | WW23 WW24 |
| IATA Code | WWP |
| FAA TCDS | A2SW |
| Data for (Version) | 1124 Westwind I |
| Variants | 1123 Westwind, 1124 Westwind I, 1124N Sea Scan, 1124A Westwind II |
