American Eagle A-1 / A-101

Trainer Biplane

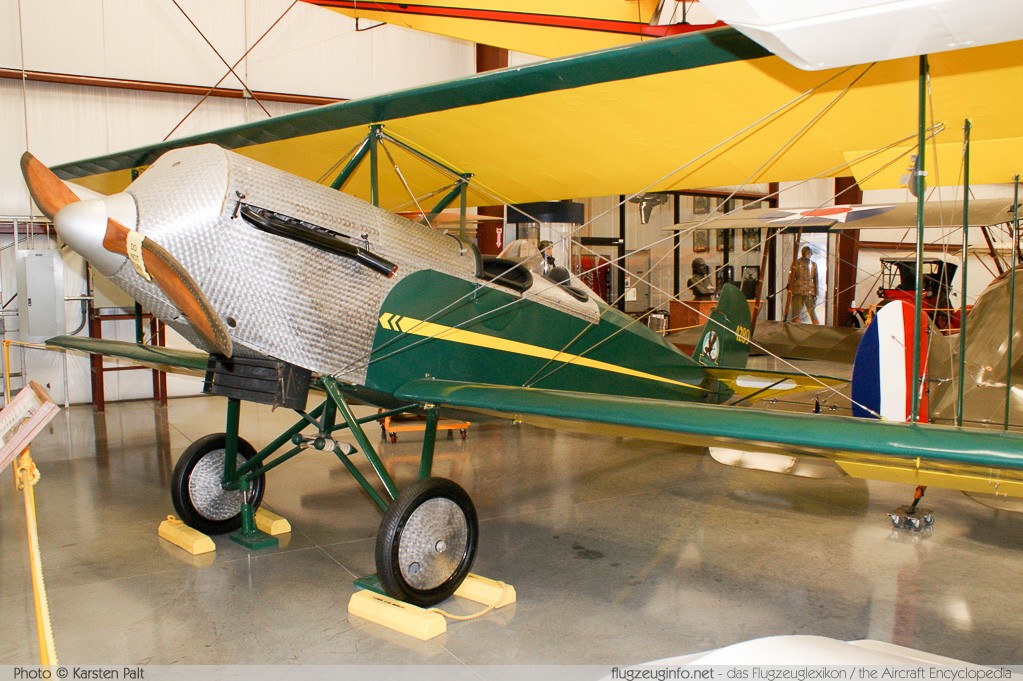

American Eagle A-1, N4289, c/n 100, Yanks Air Museum © Karsten Palt
Photo ©: Karsten Palt
The American Eagle A-1 / A-101 is a single-engine two- or three-seat trainer biplane aircraft produced by the American manufacturer American Eagle Aircraft Corporation.
The A-101 is the improved production variant with ailerons on the lower wing. Later production aircraft of the A-101 were powered by the 100 hp Curtiss OX-6 engine instead of the 90 hp Curtiss OX-5 of the earlier models. Other engines were also available. A further development was the A-129 called the ?longnose Eagle?.
Crew1
Passengers1-2
Propulsion1 Piston Engine
Engine ModelCurtiss OX-5
Engine Power67 kW90 hp
max. Cruise Speed137 km/h74 kts
  85 mph
max. Speed (vne)159 km/h86 kts
  99 mph
Service Ceiling3.048 m10.000 ft
Range644 km348 NM
400 mi.
Empty Weight557 kg1.227 lbs
max. Takeoff Weight926 kg2.041 lbs
Wing Span9,14 m29 ft 12 in
Wing Area27,9 m²300 ft²
Length7,34 m24 ft 1 in
Height2,54 m8 ft 4 in
First Flight09.04.1926
Production Statusout of production
Production Range1926-1929
Total Productionca. 300
FAA TCDSATC 17
Data for (Version)American Eagle A-101
VariantsA-129

[Photo-ID: 6257] © Karsten Palt 2012-06-12
American Eagle A-1, , N4289, c/n 100,© Karsten Palt, 2012American Eagle
A-1
Reg.: N4289
c/n: 100

flyable
Yanks Air Museum [Chino, CA]
