Arrow Sport
Sport Biplane
Photo ©: Karsten Palt
The Arrow Sport is a single-engine two-seat sports biplane aircraft produced by the American manufacturer Arrow Aircraft Corporation, later Arrow Aircraft and Motor Corporation.
| Crew | 1 | |
| Passengers | 1 | |
| Propulsion | 1 Radial Engine | |
| Engine Model | LeBlond 60-5D | |
| Engine Power | 45 kW | 60 hp |
| max. Cruise Speed | 131 km/h | 71 kts 82 mph |
| Speed | 157 km/h | 85 kts 98 mph |
| Service Ceiling | 4.267 m | 14.000 ft |
| Range | 450 km | 243 NM 280 mi. |
| Empty Weight | 368 kg | 811 lbs |
| max. Takeoff Weight | 576 kg | 1.270 lbs |
| Wing Span | 7,87 m | 25 ft 10 in |
| Wing Area | 17,0 m² | 183 ft² |
| Length | 5,87 m | 19 ft 3 in |
| Height | 2,26 m | 7 ft 5 in |
| First Flight | 1926 | |
| Production Status | out of production | |
| Production Range | 1929-1931 | |
| Total Production | ca. 100 | |
| FAA TCDS | ATC115, 2-110 | |
| Data for (Version) | Arrow A2-66 | |
| Variants | Sport, Sport 85, Sport A2-60, A2-66, A2-90, Sport Pursuit (Sport K) | |

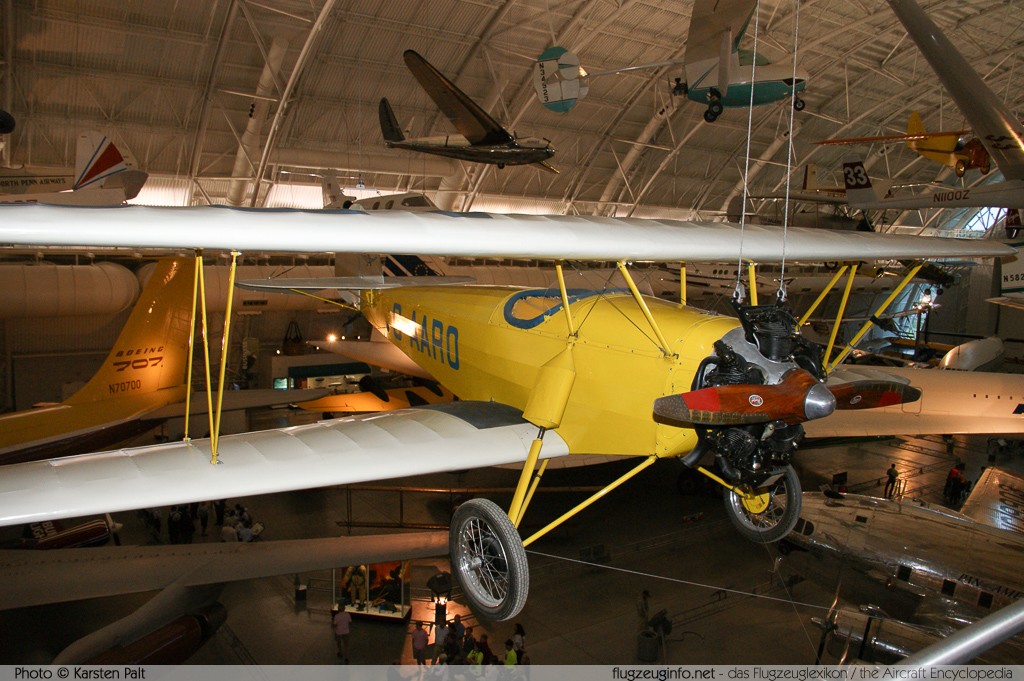

| [Photo-ID: 10209] © Karsten Palt 2014-05-28 | |
 | Arrow Sport A2-60 Reg.: G-AARO c/n: 341 |
| NASM Udvar Hazy Center [Chantilly, VA] | |
