Boeing P-26 Peashooter

Fighter

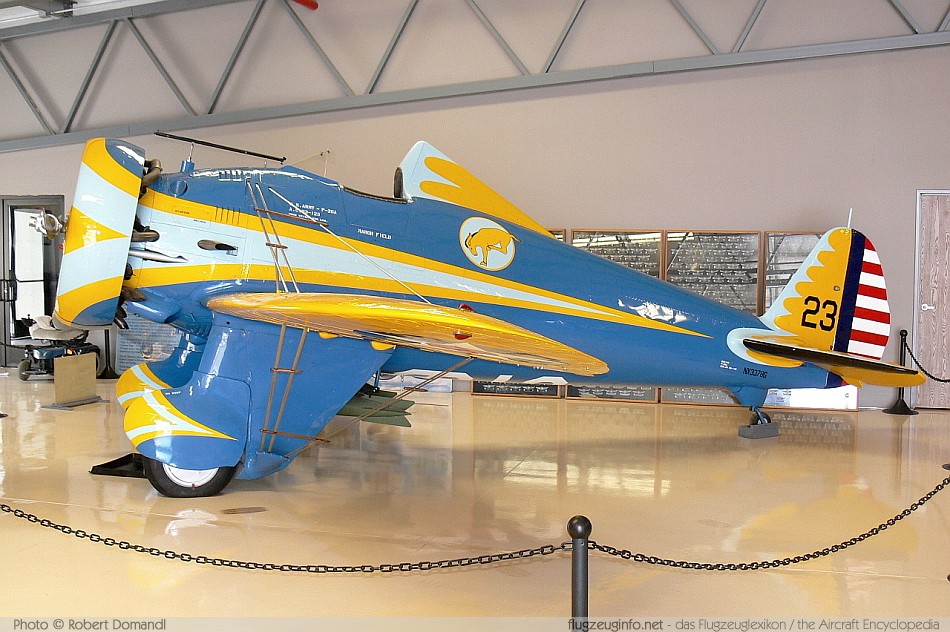

Boeing P-26A Peashooter Replica © Karsten Palt
Photo ©: Karsten Palt
The Boeing P-26 Peashooter (Model 266) is a single-engine single-seat fighter aircraft produced by the US-American manufacturer Boeing Airplane Company.
The P-26 Peashooter was the first all-metal production fighter aircraft operated by the US Army Air Corps (USAAC).
Crew1
Propulsion1 Radial Engine
Engine ModelPratt & Whitney R-1340-27 Wasp
Engine Power425 kW570 hp
max. Cruise Speed320 km/h173 kts
  199 mph
max. Speed (vne)378 km/h204 kts
  235 mph
Service Ceiling8.352 m27.400 ft
Range924 km499 NM
574 mi.
Empty Weight993 kg2.189 lbs
max. Takeoff Weight1.335 kg2.943 lbs
Wing Span8,51 m27 ft 11 in
Wing Area13,9 m²150 ft²
Length7,20 m23 ft 7 in
Height2,85 m9 ft 4 in
First Flight20.03.1932
Production Statusout of production
Total Production151
Data for (Version)Boeing P-26A Peashooter

next aircraft
[Photo-ID: 12413] © Karsten Palt 2016-04-12
Boeing P-26 Peashooter, , , c/n ,© Karsten Palt, 2016Boeing
P-26 Peashooter

Replica, on loan from San Diego Air and Space Museum
Museum of Flight [Seattle, WA]
[Photo-ID: 5475] © Karsten Palt 2012-01-11
Boeing P-26A Peashooter, , , c/n ,© Karsten Palt, 2012Boeing
P-26A Peashooter

Replica
National Museum of the United States Air Force [Dayton, Ohio / USA (Wright-Patterson AFB)]
[Photo-ID: 10234] © Karsten Palt 2014-05-28
Boeing P-26A Peashooter, United States Army Air Corps (USAAC) , 7, c/n 33-135,© Karsten Palt, 2014Boeing
P-26A Peashooter
United States Army Air Corps (USAAC)
Reg.: 7
c/n: 33-135

one of two remaining
NASM Udvar Hazy Center [Chantilly, VA]
[Photo-ID: 6172] © Karsten Palt 2012-06-14
Boeing P-26 Peashooter, , , c/n n/a, Replica,© Karsten Palt, 2012Boeing
P-26 Peashooter

Replica
San Diego Air and Space Museum [San Diego, CA]
[Photo-ID: 6173] © Karsten Palt 2012-06-14
Boeing P-26 Peashooter, , , c/n n/a, Replica,© Karsten Palt, 2012Boeing
P-26 Peashooter

Replica
San Diego Air and Space Museum [San Diego, CA]
[Photo-ID: 6121] © Karsten Palt 2012-06-12
Boeing P-26A Peashooter, United States Army Air Corps (USAAC) , NX3378G, c/n 1899,© Karsten Palt, 2012Boeing
P-26A Peashooter
United States Army Air Corps (USAAC)
Reg.: NX3378G
c/n: 1899

ex Guatemalan Air Force 0672, flyable, one of two remaining
Planes of Fame Aircraft Museum [Chino, CA]
[Photo-ID: 6120] © Karsten Palt 2012-06-12
Boeing P-26A Peashooter, United States Army Air Corps (USAAC) , NX3378G, c/n 1899,© Karsten Palt, 2012Boeing
P-26A Peashooter
United States Army Air Corps (USAAC)
Reg.: NX3378G
c/n: 1899

ex Guatemalan Air Force 0672, flyable, one of two remaining
Planes of Fame Aircraft Museum [Chino, CA]
