Caproni Ca.100

Trainer

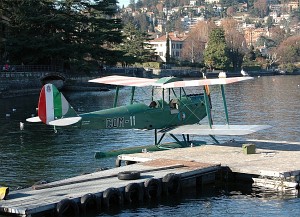

Photo ©: Dario Crusafon (photos at airliners.net)

The Caproni Ca.100 is a single-engine two-seat trainer biplane aircraft produced by the Italian manufacturer Caproni.

The Caproni Ca.100 is a development of the de Havilland D.H.60 Moth. The Ca.100 was also produced by Caproni in Peru and Bulgaria (Kaproni Bulgarski KN-1).

Crew

Propulsion	1 Piston Engine
Engine Model	de Havilland Gipsy IV
Engine Power	61 kW	82 hp

max. Cruise Speed	141 km/h	76 kts 87 mph
max. Speed (vne)	165 km/h	89 kts 102 mph
Service Ceiling	4.000 m	13.123 ft
Range	700 km	378 NM 435 mi.

Empty Weight	400 kg	882 lbs
max. Takeoff Weight	680 kg	1.499 lbs

Wing Span	8,35 (10,00) m	27 ft 5 in (32 ft 10 in)
Wing Area	24,4 m²	263 ft²
Length	7,30 m	23 ft 11 in
Height	2,75 m	9 ft 0 in

First Flight	1929
Production Status	out of production
Total Production	ca. 680
Developed from	de Havilland D.H.60 Moth

Data for (Version)	Caproni Ca.100
Variants	Caproni Ca.100 Idro, KN-1

[Photo-ID: 12187] © Karsten Palt 2016-02-18
	Caproni Ca.100 Reg.: I-GTAB
Museo Aeronautica Militare [Bracciano, Vigna di Valle]

[Photo-ID: 12146] © Karsten Palt 2016-02-17
	Caproni Ca.100 Idro Italian Air Force (Regia Aeronautica) Reg.: MM56237 c/n: 3752 ex I-DISC
Museo dell Aeronautica Gianni Caproni [Trento]

[Photo-ID: 12147] © Karsten Palt 2016-02-17
	Caproni Ca.100 Idro Italian Air Force (Regia Aeronautica) Reg.: MM56237 c/n: 3752 ex I-DISC
Museo dell Aeronautica Gianni Caproni [Trento]
