de Havilland D.H.84 Dragon
Light Passenger Transport Aircraft
The de Havilland D.H.84 Dragon is a twin-engined seven-seat light passenger biplane aircraft produced by the British manufacturer de Havilland Aircraft Company. The D.H.84 Dragon was also used as a military transport and trainer aircraft.
The Dragon was also built by de Havilland Australia as a military trainer aircraft during World War II.
Crew | 1 | |
Passengers | 6 |
Propulsion | 2 Piston Engines | |
Engine Model | de Havilland Gipsy Major | |
Engine Power (each) | 97 kW | 130 hp |
Speed | 217 km/h | 117 kts 135 mph |
Service Ceiling | 4.420 m | 14.500 ft |
Range | 878 km | 474 NM 545 mi. |
Empty Weight | 1.060 kg | 2.337 lbs |
max. Takeoff Weight | 2.041 kg | 4.500 lbs |
Wing Span | 14,43 m | 47 ft 4 in |
Wing Area | 34,9 m² | 376 ft² |
Length | 10,52 m | 34 ft 6 in |
Height | 3,30 m | 10 ft 10 in |
First Flight | 12.11.1932 | |
Production Status | out of production | |
Total Production | 202 |
Data for (Version) | de Havilland D.H.84 Dragon | |
Variants | D.H.84 Dragon 1, D.H.84 Dragon 2, D.H.84M Dragon |
[Photo-ID: 7287] © Karsten Palt 2013-09-06 | |

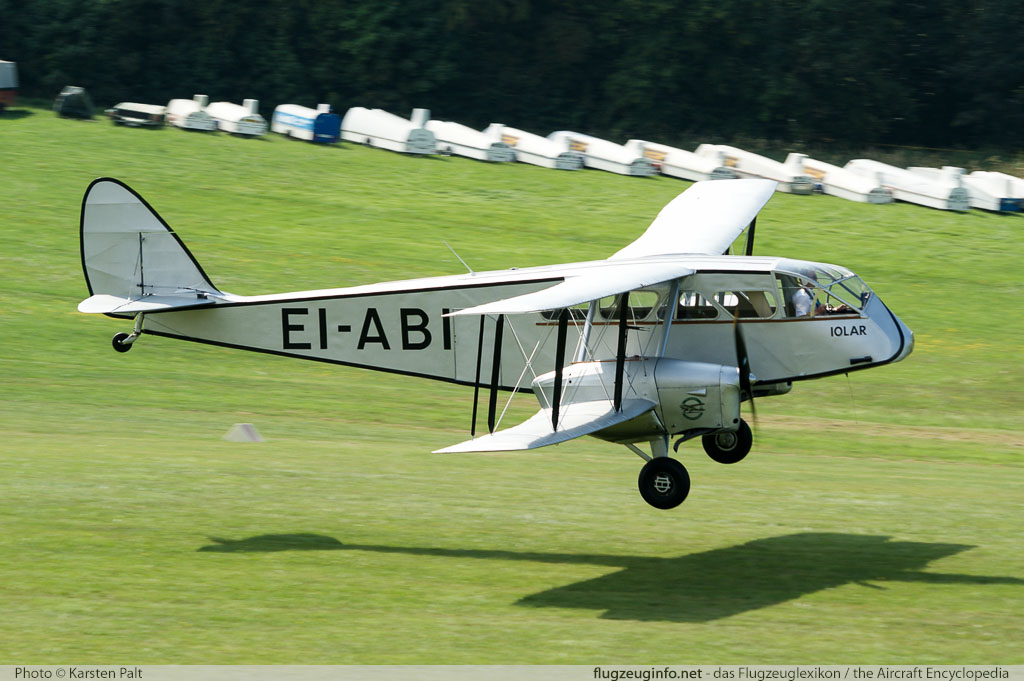

De Havilland DH 84 Dragon 2 Aer Lingus (Aer Lingus Charitable Foundation) Reg.: EI-ABI c/n: 6105 | |
Oldtimer-Fliegertreffen 2013 [Kirchheim unter Teck - Hahnweide (EDST)] |
[Photo-ID: 7288] © Karsten Palt 2013-09-06 | |
De Havilland DH 84 Dragon 2 Aer Lingus (Aer Lingus Charitable Foundation) Reg.: EI-ABI c/n: 6105 | |
Oldtimer-Fliegertreffen 2013 [Kirchheim unter Teck - Hahnweide (EDST)] |
