Mil Mi-14

Naval Utility Helicopter

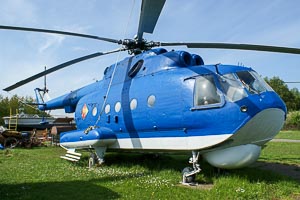

Mil Mi-14PL NVA - Volksmarine 625 B4005 © Karsten Palt
Photo ©: Karsten Palt
The Mil Mi-14 is a twin-engined medium naval utility helicopter developed by the Soviet manufacturer Mil OKB, today MIL Moscow helicopter plant, JSC (Russia). The main purposes of the Mi-14 are anti-submarine warfare, mine countermeasures and search and rescue operations (SAR).
The Mil Mi-14 is an amphibious development of the Mil Mi-8.
Crew4
Propulsion2 Turboshaft Engines
Engine ModelKlimov TW3-117MT / TV3-117MT
Engine Power (each)1435 kW1924 shp
Speed230 km/h124 kts
  143 mph
Service Ceiling4.000 m13.123 ft
Range800 km432 NM
497 mi.
Empty Weight8.900 kg19.621 lbs
max. Takeoff Weight14.000 kg30.865 lbs
Rotor Blades (main/tail)5/3
Main Rotor Diameter21,29 m69 ft 10 in
Tail Rotor Diameter3,91 m12 ft 10 in
Rotor Disc Area356,0 m²3832 ft²
Length18,38 m60 ft 4 in
Height6,93 m22 ft 9 in
First Flight09/1969
Production Statusout of production
Total Productionca. 230
Developed fromMil Mi-8
ICAO CodeMI14
NATO CodeHaze
Data for (Version)Mil Mi-14PL

next aircraft
[Photo-ID: 1435] © Karsten Palt 2008-09-27
Mil Mi-14PL, NVA - Volksmarine, 618, c/n B4002,© Karsten Palt, 2008Mil
Mi-14PL
NVA - Volksmarine
Reg.: 618
c/n: B4002

ex 95+02
Flugausstellung L.+P. Junior [Hermeskeil]
[Photo-ID: 2166] © Karsten Palt 2009-05-19
Mil Mi-14PL, NVA - Volksmarine, 625, c/n B4005,© Karsten Palt, 2009Mil
Mi-14PL
NVA - Volksmarine
Reg.: 625
c/n: B4005

ex 95+05
Flugplatzmuseum Peenemünde [Peenemünde (EDCP / PEF)]
[Photo-ID: 1630] © Karsten Palt 2009-04-02
Mil Mi-14PL, NVA - Volksmarine, 637, c/n B4006,© Karsten Palt, 2009Mil
Mi-14PL
NVA - Volksmarine
Reg.: 637
c/n: B4006

displayed as Soviet 637, ex 95+06
Technik Museum [Speyer]
