Morane-Saulnier Type G

Trainer / Sport Aircraft

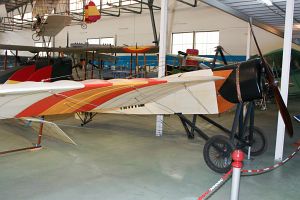

Morane-Saulnier Model G Replica Museo del Aire Madrid © Karsten Palt
Photo ©: Karsten Palt
The Morane-Saulnier G is a single-engine two-seat sports and trainer aircraft produced by the French manufacturer Aéroplanes Morane-Saulnier. It served also as a general military aircraft in France and in the United Kingdom.
The Morane-Saulnier G was also license built by Duks in Russia and Grahame-White in the UK.
Crew1
Passengers1
Propulsion1 Rotary Engine
Engine ModelGnome 7 Lambda
Engine Power60 kW80 hp
Speed130 km/h70 kts
  81 mph
Empty Weight280 kg617 lbs
max. Takeoff Weight529 kg1.166 lbs
Wing Span9,20 m30 ft 2 in
Wing Area18,0 m²194 ft²
Length6,40 m20 ft 12 in
Height2,50 m8 ft 2 in
First Flight1912
Production Statusout of production
Total Production> 150
Data for (Version)Morane-Saulnier G

[Photo-ID: 10709] © Karsten Palt 2014-10-23
Morane-Saulnier Model G, , , c/n ,© Karsten Palt, 2014Morane-Saulnier
Model G

Replica
Museo del Aire [Madrid]
