PZL Warszawa-Okecie PZL-106 Kruk

Agricultural Aircraft

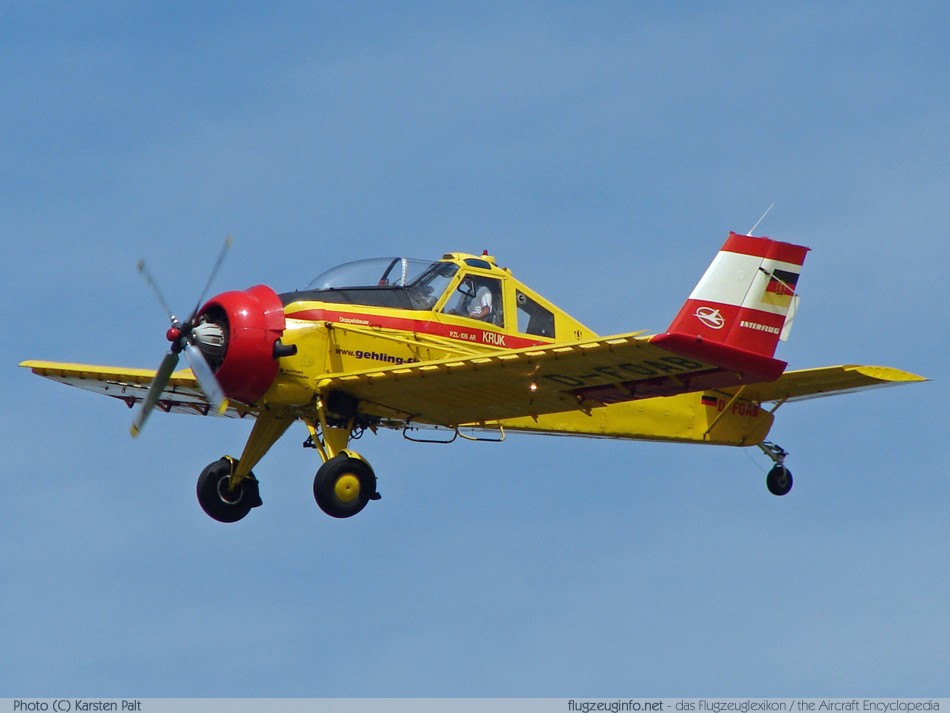

PZL Warszawa-Okecie PZL-106AR Kruk © Karsten Palt
Photo ©: Karsten Palt
The PZL 106 Kruk is a single-engine single-seat agricultural aircraft produced by the Polish manufacturer WSK-Okecie, later WSK PZL Warszawa-Okecie, today EADS PZL Warszawa-Okecie S.A..
Crew1
Propulsion1 Radial Engine
Engine ModelPZL-Rzeszow PZL-3S
Engine Power441 kW591 hp
Speed137 km/h74 kts
  85 mph
Service Ceiling4.600 m15.092 ft
Range1.100 km594 NM
684 mi.
Empty Weight1.670 kg3.682 lbs
max. Takeoff Weight3.000 kg6.614 lbs
Wing Span14,80 m48 ft 7 in
Wing Area32,2 m²347 ft²
Length9,10 m29 ft 10 in
Height3,30 m10 ft 10 in
First Flight17.04.1973
Production Statusout of production
Total Productionca. 265
ICAO CodePZ06 PZ6T
Data for (Version)WSK-Okecie PZL-106B Kruk
VariantsPZL-106A, PZL-106AR, PZL-106AS, PZL-106B, PZL-106BT-601 Turbo Kruk, PZL-106BTU-34 Turbo Kruk

next aircraft
[Photo-ID: 1352] © Karsten Palt 2008-08-17
PZL Warszawa-Okecie 106AR Kruk, Private (Dieter Gehling), D-FOAB, c/n 48040,© Karsten Palt, 2008PZL Warszawa-Okecie
106AR Kruk
Private (Dieter Gehling)
Reg.: D-FOAB
c/n: 48040

Flugtag Breitscheid 2008 [Breitscheid (EDGB)]
[Photo-ID: 2661] © Karsten Palt 2009-09-05
PZL Warszawa-Okecie 106AR Kruk, Private (Dieter Gehling), D-FOAB, c/n 48040,© Karsten Palt, 2009PZL Warszawa-Okecie
106AR Kruk
Private (Dieter Gehling)
Reg.: D-FOAB
c/n: 48040

Oldtimer-Fliegertreffen 2009 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 7249] © Karsten Palt 2013-09-06
PZL Warszawa-Okecie 106AR Kruk, Private (Dieter Gehling), D-FOAB, c/n 48040,© Karsten Palt, 2013PZL Warszawa-Okecie
106AR Kruk
Private (Dieter Gehling)
Reg.: D-FOAB
c/n: 48040

Oldtimer-Fliegertreffen 2013 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 7250] © Karsten Palt 2013-09-06
PZL Warszawa-Okecie 106AR Kruk, Private (Dieter Gehling), D-FOAB, c/n 48040,© Karsten Palt, 2013PZL Warszawa-Okecie
106AR Kruk
Private (Dieter Gehling)
Reg.: D-FOAB
c/n: 48040

Oldtimer-Fliegertreffen 2013 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 7375] © Karsten Palt 2013-09-07
PZL Warszawa-Okecie 106AR Kruk, Private (Dieter Gehling), D-FOAB, c/n 48040,© Karsten Palt, 2013PZL Warszawa-Okecie
106AR Kruk
Private (Dieter Gehling)
Reg.: D-FOAB
c/n: 48040

Oldtimer-Fliegertreffen 2013 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 13562] © Karsten Palt 2016-09-11
PZL Warszawa-Okecie 106AR Kruk, Private (Dieter Gehling), D-FOAB, c/n 48040,© Karsten Palt, 2016PZL Warszawa-Okecie
106AR Kruk
Private (Dieter Gehling)
Reg.: D-FOAB
c/n: 48040

Oldtimer-Fliegertreffen 2016 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 11656] © Karsten Palt 2015-08-22
PZL Warszawa-Okecie PZL-106 Kruk, , SP-PBK, c/n 05005,© Karsten Palt, 2015PZL Warszawa-Okecie
PZL-106 Kruk
Reg.: SP-PBK
c/n: 05005

one of 7 pre-production Kruk with T-Tail
Polish Aviation Museum [Krakow]
[Photo-ID: 11655] © Karsten Palt 2015-08-22
PZL Warszawa-Okecie PZL-106A Kruk, , SP-KFB, c/n 07810131,© Karsten Palt, 2015PZL Warszawa-Okecie
PZL-106A Kruk
Reg.: SP-KFB
c/n: 07810131

Polish Aviation Museum [Krakow]
[Photo-ID: 407] © Karsten Palt 2007-07-14
PZL Warszawa-Okecie PZL-106AR Kruk, Private (Dieter Gehling), D-FOAB, c/n 48040,© Karsten Palt, 2007PZL Warszawa-Okecie
PZL-106AR Kruk
Private (Dieter Gehling)
Reg.: D-FOAB
c/n: 48040

Flugtag Nordholz 2007 [Nordholz-Spieka (EDXN)]
[Photo-ID: 432] © Karsten Palt 2007-07-21
PZL Warszawa-Okecie PZL-106AR Kruk, Private (Dieter Gehling), D-FOAB, c/n 48040,© Karsten Palt, 2007PZL Warszawa-Okecie
PZL-106AR Kruk
Private (Dieter Gehling)
Reg.: D-FOAB
c/n: 48040

Flugtag Ganderkesee 2007 [Ganderkesee - Atlas Airfield (EDWQ)]
[Photo-ID: 1702] © Karsten Palt 2009-04-02
PZL Warszawa-Okecie PZL-106BR Kruk, , SP-ZBH, c/n ,© Karsten Palt, 2009PZL Warszawa-Okecie
PZL-106BR Kruk
Reg.: SP-ZBH

Technik Museum [Speyer]
