Globe / TEMCO GC-1 Swift

Sport / Touring Aircraft

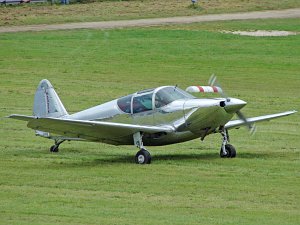

Globe Swift GC-1B N3327 c/n 1320 © Karsten Palt
Photo ©: Karsten Palt
The Globe / TEMCO GC-1 Swift is a single engine two seat sport aircraft produced by the American manufacturer Globe Aircraft Company and TEMCO Aircraft.
The Swift was developed by R.S. Johnson. Production by Globe Aircraft Company and later by TEMCO Aircraft.
Crew1
Passengers1
Propulsion1 Piston Engine
Engine ModelContinental C-125-1 / -2
Engine Power93 kW125 hp
max. Cruise Speed226 km/h122 kts
  140 mph
max. Speed (vne)298 km/h161 kts
  185 mph
Service Ceiling5.486 m18.000 ft
Rate of climb213 m/min700 ft/min
Range1.852 km1.000 NM
1.151 mi.
Empty Weight621 kg1.370 lbs
max. Takeoff Weight896 kg1.975 lbs
max. Landing Weight896 kg1.975 lbs
Wing Span8,94 m29 ft 4 in
Wing Area12,3 m²132 ft²
Length6,35 m20 ft 10 in
Height1,88 m6 ft 2 in
First Flight1945
Production Statusout of production
Production Range1946-1951
Total Production1499
ICAO CodeGC1
FAA TCDSA-766
Data for (Version)Globe GC-1B Swift
VariantsGC-1A, GC-1B

next aircraft
[Photo-ID: 10271] © Karsten Palt 2014-05-28
Globe Swift GC-1A, , NC80518, c/n 21,© Karsten Palt, 2014Globe
Swift GC-1A
Reg.: NC80518
c/n: 21

NASM Udvar Hazy Center [Chantilly, VA]
[Photo-ID: 606] © Karsten Palt 2007-09-08
Globe Swift GC-1B, , N3327K, c/n 1320,© Karsten Palt, 2007Globe
Swift GC-1B
Reg.: N3327K
c/n: 1320

Oldtimer-Fliegertreffen 2007 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 2583] © Karsten Palt 2009-09-04
Globe Swift GC-1B, , N3327K, c/n 1320,© Karsten Palt, 2009Globe
Swift GC-1B
Reg.: N3327K
c/n: 1320

Oldtimer-Fliegertreffen 2009 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 7359] © Karsten Palt 2013-09-06
Temco Swift GC-1B, , N3866K, c/n 3566,© Karsten Palt, 2013Temco
Swift GC-1B
Reg.: N3866K
c/n: 3566

Oldtimer-Fliegertreffen 2013 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 7360] © Karsten Palt 2013-09-06
Temco Swift GC-1B, , N3866K, c/n 3566,© Karsten Palt, 2013Temco
Swift GC-1B
Reg.: N3866K
c/n: 3566

Oldtimer-Fliegertreffen 2013 [Kirchheim unter Teck - Hahnweide (EDST)]
[Photo-ID: 13589] © Karsten Palt 2016-09-10
Temco Swift GC-1B, , N3866K, c/n 3566,© Karsten Palt, 2016Temco
Swift GC-1B
Reg.: N3866K
c/n: 3566

Oldtimer-Fliegertreffen 2016 [Kirchheim unter Teck - Hahnweide (EDST)]
