Aeritalia / Fiat G.91Y

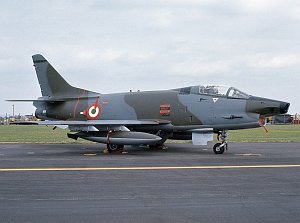

Fiat G.91Y © Steve Williams
Photo ©: Steve Williams (photos at airliners.net)

G.91Y

Fighter Bomber / Reconnaissance Aircraft

The Aeritalia G.91Y is a twin-engined single-seat fighter bomber and reconnaissance aircraft produced by the Italian manufacturer Aeritalia.

Crew1

Propulsion2 Turbojet Engines
Engine ModelGeneral Electric J85-GE-13A
Engine Power (each)
dry/with Afterburner
12,1 / 18,1 kN2720 / 4069 lbf

Speed1111 km/h600 kts
  690 mph
Mmo (max. Mach)Mach 0.95
Service Ceiling12.200 m40.026 ft
Rate of climb5157 m/min16920 ft/min
Range1.200 km648 NM
746 mi.

Empty Weight3.680 kg8.113 lbs
max. Takeoff Weight7.800 kg17.196 lbs

Wing Span9,01 m29,6 ft
Wing Area18,1 m195 ft
Length11,67 m38,3 ft
Height4,43 m14,5 ft

First Flight27.12.1966
Production Statusout of production
Total Production67
Developed fromAeritalia / Fiat

Data for (Version)Aeritalia G.91Y

Remarks
The G.91Y is a twin-engined development of the single-engine Fiat G.91. It was operated by the Italian Air Force (Aeronautica Militare) only.
